Robust Design and Precision Control

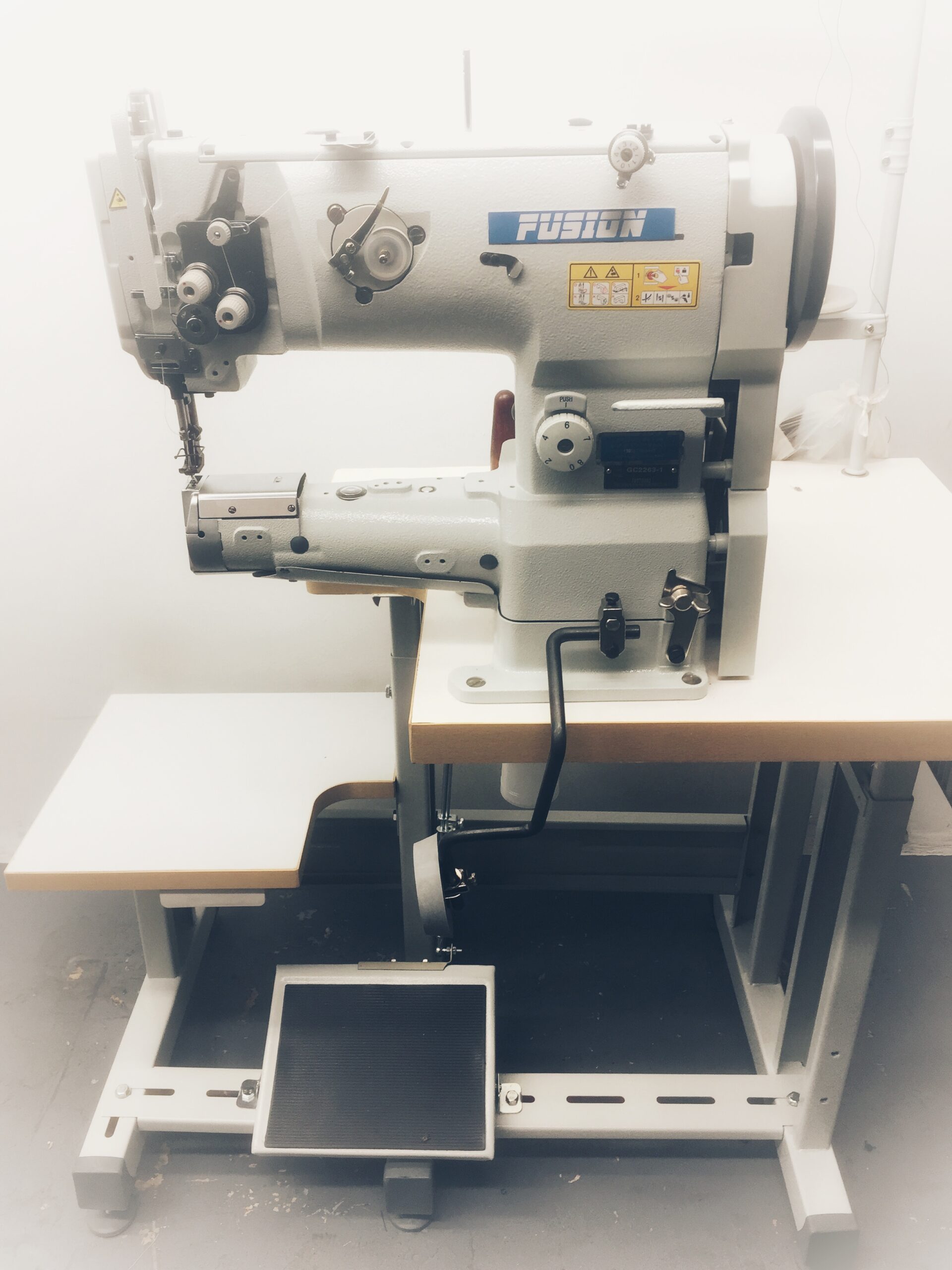

The Fusion 1341 Cylinder Bed Heavy Duty Compound Feed Lockstitch Sewing Machine stands as a testament to industrial strength and precision. To begin, this triple transport machine utilizes a large capacity vertical hook, therefore ensuring consistent and reliable stitch formation. Subsequently, it features a contemporary design, which not only enhances its aesthetic appeal but also contributes to its overall efficiency. Furthermore, a sliding lever thread take-up and a dial-type stitch regulator allow for meticulous control over stitch parameters. Moreover, an inside belt drives both the top and hook shafts, consequently providing the necessary speed for demanding tasks. In essence, the machine’s design prioritizes both power and accuracy.
Heavy-Duty Application and Versatility
Additionally, a high presser foot lift allows for the effortless handling of thick and bulky materials. Similarly, a long stitch length provides versatility across a range of applications. Consequently, the Fusion 1341 proves indispensable in the manufacturing of heavy-duty luggage and soft-sided bags. Moreover, it excels in the production of seat cushions, as well as binding operations on luggage, tote bags, and similar articles. Ultimately, the Fusion 1341 combines its robust construction with these advanced features, thus making it an ideal solution for industrial sewing environments requiring exceptional performance.
Features
- With large vertical-axis hook
- The machine is equipped as standard with a mechanism to correct uneven material feed by making-micro adjustments to the bottom-feed
- Compared with the elliptical feed, the rectangular feed helps reduce gathered stitches
- The ratio of alternate vertical movement remains unchanged even when the material thickness changes
- Higher lift of the presser foot
- The maximum alternating vertical movement is 6.5mm
- Excellent operability and maintainability
- The underside of the top end of the cylinder-bed is provided with an easy-to-remove cover. This promises easy cleaning of thread wastes
- The stitch length can be easily selected by the stitch dial
- The machine’s enhanced operability features include a clear view of the area around the needle, placement of the bobbin thread winder on the front face of the machine arm, and a large handwheel(160mm)
- A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup
- The machine’s full-open-type top design makes adjusting works easier
- The machine comes with a lubricating mechanism that uses a centralized oil wick
- This substantially reduces the time and trouble required for oiling the machine. (The hook needs manual oiling with an oiler)
- A walking foot mechanism is built into the machine arm to prevent oil from scattering
- Complete with opened table stand and servo motor.
- Table style may vary, depending on stock.
- Max. Sewing Speed 2200 s.p.m.
- Max. Stitch Length 6mm
- Needle Bar Stroke 33.2mm
- Press foot Lift by Hand 8.5mm
- Presser Foot Lift by Knee 13mm
- Needle DP x 17 18# – 23#
- Rotating Hook – Standard Vertical
- Lubrication By Hand
- Cylinder Dia. 62mm
- Working Space 258x110mm
